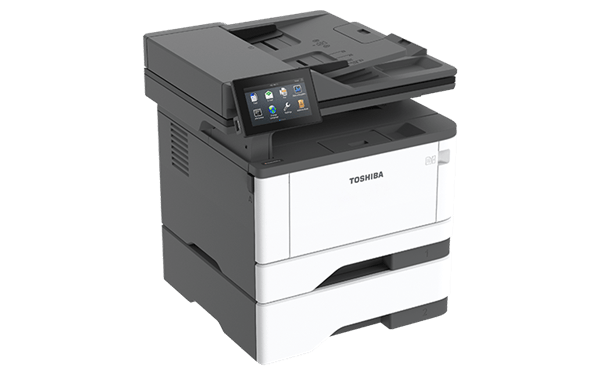

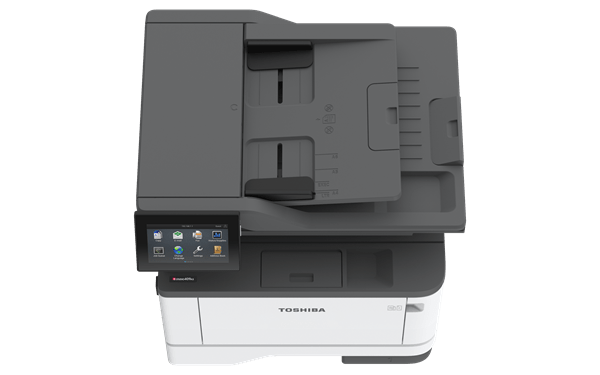

All in one device

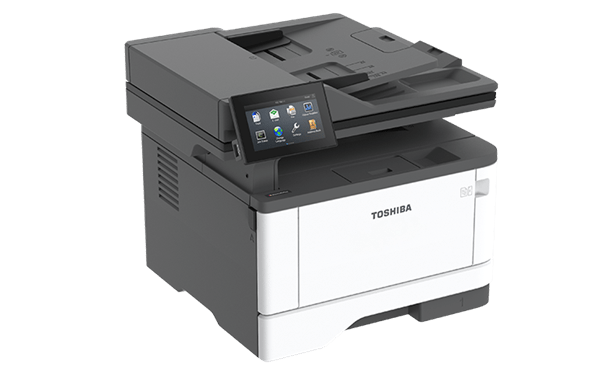

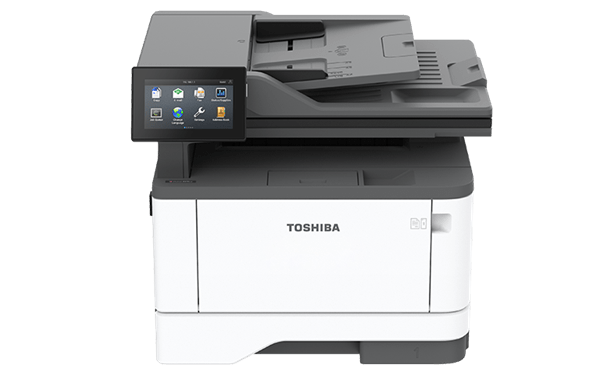

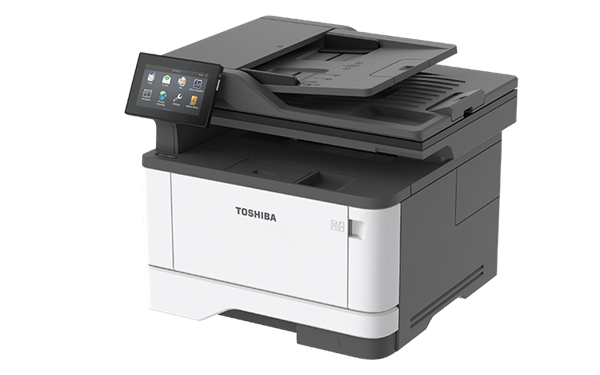

The e-STUDIO409AS offers all the essentials a modern small to medium office requires, in a compact package - print, copy, scan and fax.

Impressive speed

Impressive print speeds of up to 40 pages per minute can be achieved and with a first print out time in as little as 5.9 seconds, you'll save time and money.

Eco-Friendly

The e-STUDIO409AS has smart energy saving features with quiet mode, sleep mode and duplex printing function as standard, further saving you cost and resources.

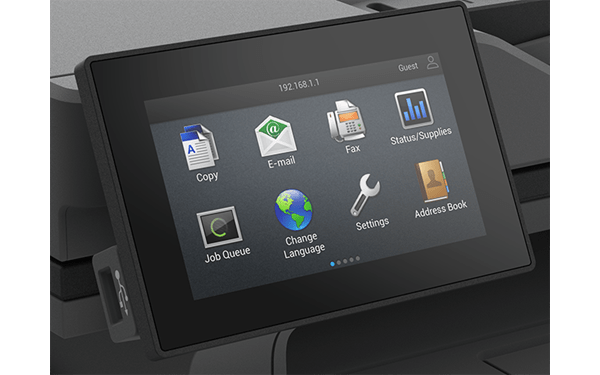

Colour LCD display

The 10.9 cm (4.3") colour touchscreen display panel allows for intuitive navigation of all menus and functions.

General

Control Panel: 10.9 cm (4.3”) LCD Touch Panel
Dimensions & Weight: 412 x 361 x 354 mm ~ 13.7 kg
Paper Size & Weight: A6-A4/custom, 60-120 g/m2 Bypass 99x148 mm - 215x359 mm, Envelope (DL, C5, B5, Monarch), 60-217 g/m2
Warm-up Time: Approx. 9 seconds (from power save mode)

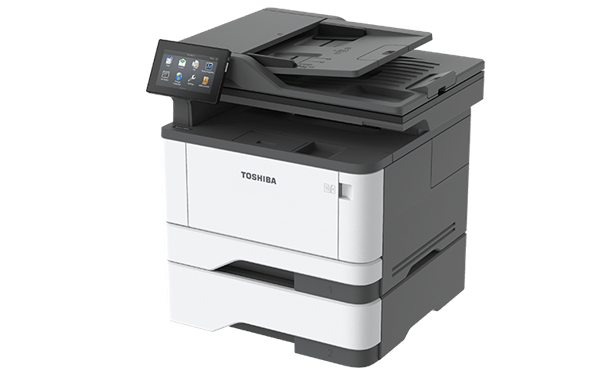

Paper Capacity: 1x 250 sheets (Cassette), 1x 100 sheets (Bypass), 1x550 sheets (Optional Cassette) Maximum: 900 sheets
Memory: Std. 2 GB, Max 2 GB
Print Speed: 40 ppm
Automatic Duplex: A4/custom, 60-90 g/m2
Interface: 10Base-T/100Base-TX/1000Base-T (incl. IPv6), High Speed USB 2.0, WLAN1) (IEEE802.11 a/b/g/n/ac)
Starter Kit: Starter cartridge with Toner and Imaging unit

Print

Mobile Printing: AirPrint, Mopria Print Service, e-BRIDGE Print & Scan
Resolution: Max.: 1200 x 1200 dpi
Page Description Languages: PCL 6, PCL 5, PostScript 3 and PDF v1.7 emulation, PCLm
Print Functions: Universal Printer Driver, Print from USB, Multiple pages per sheet, Envelope printing
Supported Systems: Windows 11/10/8.1/8, Windows Server 2022/2019/2016/2012/2012 R2/2008/2008 R2, Mac OS X 10.10-10.15, Linux, Novell NetWare, Citrix, SAP

Scan

Scan Functions: Scan to E-Mail, Scan to USB, Scan to File, Scan to Network Folder (FTP), TWAIN.
Resolution: Colour: max. 600 x 600 dpi. Mono: max. 1,200 x 1,200 dpi (via platen, network or USB TWAIN driver)
Scan Speed: Simplex: Colour/Monochrome 20/46 ipm (150 dpi). Duplex: Colour/Monochrome 40/92 ipm (150 dpi)
Document Feeder: Simplex/Duplex: 50 sheets, A6-A4/custom. 60-90 g/m2
Scan Modes: Colour, Greyscale, Monochrome
File Formats: TIFF, JPG, PDF, Secure PDF, PDF/A, XPS

Fax

Transmission Speed: Approx. 3 seconds per page
Incoming Fax Routing: Others: to email, Support Fax Server, Cloud Fax, Fax Forward to email or FTP
Communication: Super G3
Compression: JBIG, JBIG2, MMR, MR, MH, JPEG

Copy

Resolution: Max. 600 x 600 dpi
First Copy Output Time: ~ 5.9 seconds
Zoom: 25 - 400%
Copy Modes: Text, Text/Photo, Photo, Graphics
Copy Functions: Multiple pages per copy, Mixed size copy, Margin shift, ID Card copy, Create booklet, Sets (up to 999)

[This Class 1 laser product complies with IEC60825-1]. Technical data is subject to change without prior notice. All company and/or product names are trademarks and/or registered trademarks of their respective manufacturers in their markets and/or countries. All rights reserved. We are constantly making efforts to deliver the latest status of data to our partners. Specifications for some models may change in the time between the production and the release of this documentation. Productivity and paper specifications are related to paper size of A4 and a paper weight of 80 g/m2 if not otherwise mentioned. Warm-up time and print speed may vary depending on the operating environment.

1 GB = 1 billion bytes; the actual formatted capacity is less. Available capacity will also be less if software applications are pre-installed.

* Optional

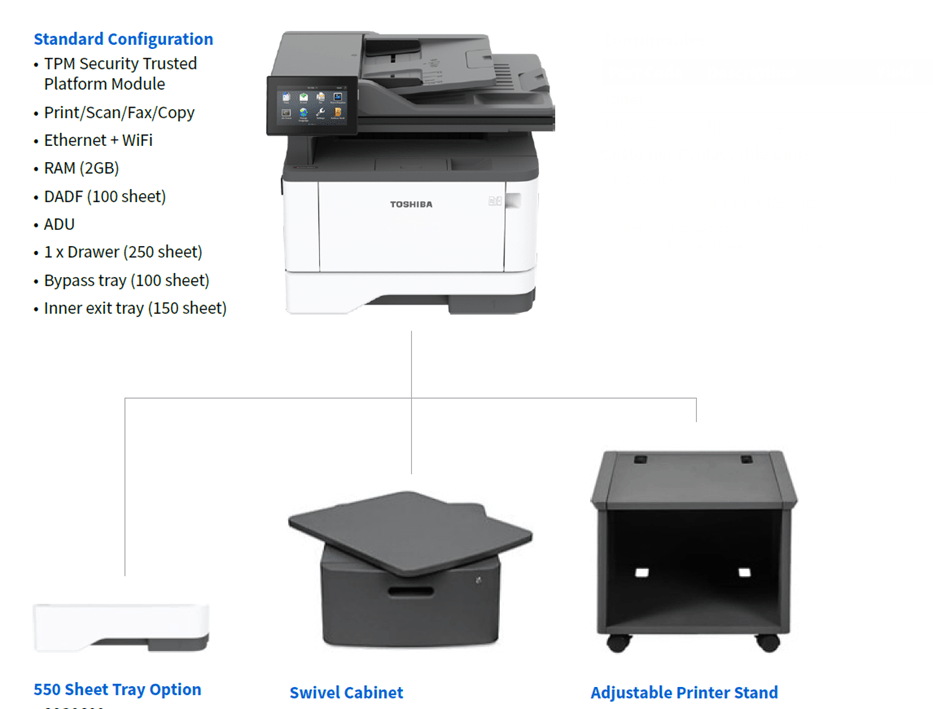

e-STUDIO409AS configuration
